[Setup & Tutorial] btc miner Garden 8GH ASIC blade bitcoin miner asic miner for bitcoin mining

{UPDATE}

• This blog had moved to our official site: WWW.EASTSHORE.XYZ

Check our official site for the newest bitcoin miner, the most updated tutorial and amazing support! :-)

{Video Tutorial}

Here is the video tutorial for this miner:

{Mining Proxy Program}

You need a proxy program for mining, please download here:

• https://drive.google.com/file/d/0B-_jcpU1s5dgcVBJZXMwWGloMFE/edit?usp=sharing

It is a .zip file, plz click “file → download” to download it. Plz unzip it, and open the run.bat by notepad to see how to use this program.

{Step by Step}

1. Get the PSU connect to the miner. Please make sure the 12V DC of the PSU is up to 15A. (How to setup the PSU and connect to the miner, see section {Setup PSU} below)
2. Check the configure IP address on the blade. Usually it is 192.168.1.x:10000(for example: 192.168.1.14:10000).
3. Please make sure your router address is 192.168.1.x too(for example: 192.168.1.1), or you need change the IP of your rounter to 192.168.1.x temporary in order to configure the miner.
4. Get the internet cord connect the miner to the router.
5. Configure your miner: open IE → input http://192.168.1.x:10000(for example: http://192.168.1.14:10000). Plz enter it completly.
6. Configure your miner(see the section {Abount the setup IP} below). Your can also change the IP of the miner here(for example: change it from 192.168.1.x to 192.168.20.x, so you can connect miner to a router at 192.168.20.x.).
7. Download the mining proxy program in the section {Mining Proxy Program}.
8. Unzip the mining proxy program and run the .bat file run.bat, then, mining will start.

About finding out your home internet setting and setting the blade accordingly, see the section {Finding Out Your Home Internet Setting} below.

{Abount the setup IP}

Every blade has a configure ip address; the ip is marked on the blade, like below:

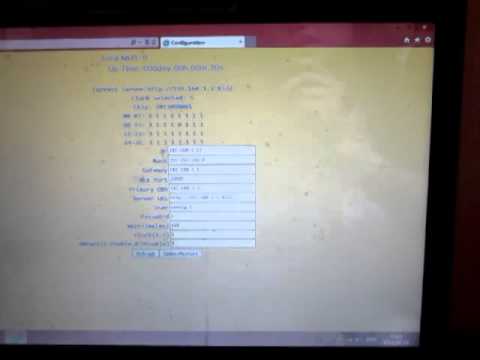

The default ip address of this blade is 192.168.1.13:10000. So you can Configure the blade in 192.168.1.13:1000 as well as change the ip itself (open IE, and input: http://192.168.1.13:1000, plz enter it completly):

IMPORTANT: plz don't change the IP to the wrong format, such as 192.168.1.x:10000.(:10000 is the port number, should be set in the port option)

{Finding Out Your Home Internet Setting}

[Windows] While your computer is connected to the Internet, go to the Command Prompt and type "ipconfig" then press "ENTER" Key.  This will give you the network information you'll need later.  Please set the blade accordingly(as the picture showing)!

{Setup PSU}

For this guide, we selected to use  HutKey WD600 600W ATX PSU as our power supply(Check it out: http://www.aliexpress.com/store/product/BTC-miner-600W-12V50A-Power-Supply/1035615_1541815401.html).

Let’s connect the PSU to the miner by the +12V lines of the PSU:

• Setup PSU, so it can start without motherboard, see here: http://eastshoretrade.blogspot.com/2014/01/setup-tutorial-bitcoin-mining-common.html

• Selecting the +12V lines from the PSU, see here: http://eastshoretrade.blogspot.com/2014/01/setup-tutorial-bitcoin-mining-common.html

• Connect the +12V line to the miner: you should cut the 6pin cables and get the yellow line(+12V) of the 6pin connect to the red line of the cord and the black line connecting to the black one of the cord we send to you together. So, a 6pin connector can take 3 blades running together(one blade need +12V DC > 15A, so plz make sure your PSU is poweful enough).

The flowing pictures showing the connecting of the PSU and the power cord:

{Connect the blade}

Please note the position of the red line and the black line.

{Others}

• Make sure the miners run in a cool environment(You may need a fan for dissipation).
