【Tutorial & Setting up】Gridseed Litecoin Miner 5.2MH Gridseed Blade G-Blade Asic Scrypt Miner Up to 6MH for Scrypt Mining






For trouble list, please scroll down to the section {TROUBLE LIST} below.



** IMPORTANT

  • The miner does not come along with the accessores if you don't buy the accessores packages or the whole sales include accessories.
  • There is no usb-hub of the accessories for only 1 miner.



{UPDATE}

Check our official site for the newest bitcoin miner, the most updated tutorial and amazing support! :-)





{Accessories Needed}

  • Please Skip This Section: If you also buy accessories packages in our store(or the whole sales include all accessories).

Or, you need accessories below(for 1 miner) :

  • 1 x Raspberry Pi type B
  • 1 x SD card (>= 8GB) (hold the mining system, should be upgraded to the wiiBox firmware)
  • 1 x Ethernet cord
  • 1 x 5V 2A microUSB charging source (function as the PSU for the Raspberry Pi)
  • 2 x Mini USB cord (each blade of the miner needs one, for data transfer)
  • 2 x Power cord (2.5mm inner diameter, connect PSU to the blade)
  • 1 x 360w PSU

See section {firmware upgrade} for how to upgrade the firmware.


{Miner Connection}











(* plz make sure the power cord and the power supply for the Raspberry Pi are fully connected(if not, the Raspberry Pi will not work and the LED on the Pi will not shine). Plz try a few more times if the plug is not so connect well.)








{Miner Connection -- Use usb-hub}

 If you buy more one miner, you need a usb-hub to connect the Raspberry Pi to the usb-hub for data transfer.

 Here is the usb-hub and how to connect it to the Pi :







{Mining Guide}

Below is the miner configuration instructions:

  • Power on the miner.
  • Power on the Pi.
  • Wait for 1~2 minutes.
  • Open IE, and input the address: en.wiibox.net

  • Click "Find New" --> "Start Scanning"

  • It may take 1~5 minutes for scanning.
  • Then, your new device is found. Please remember the ip of your new device. (eg. In the picture, it's "192.168.1.14")

  • Input the IP of your new device in the IE address bar.(eg. 192.168.1.14), and press "enter" on the keyboard.
  • Then showing the control page of the miner.

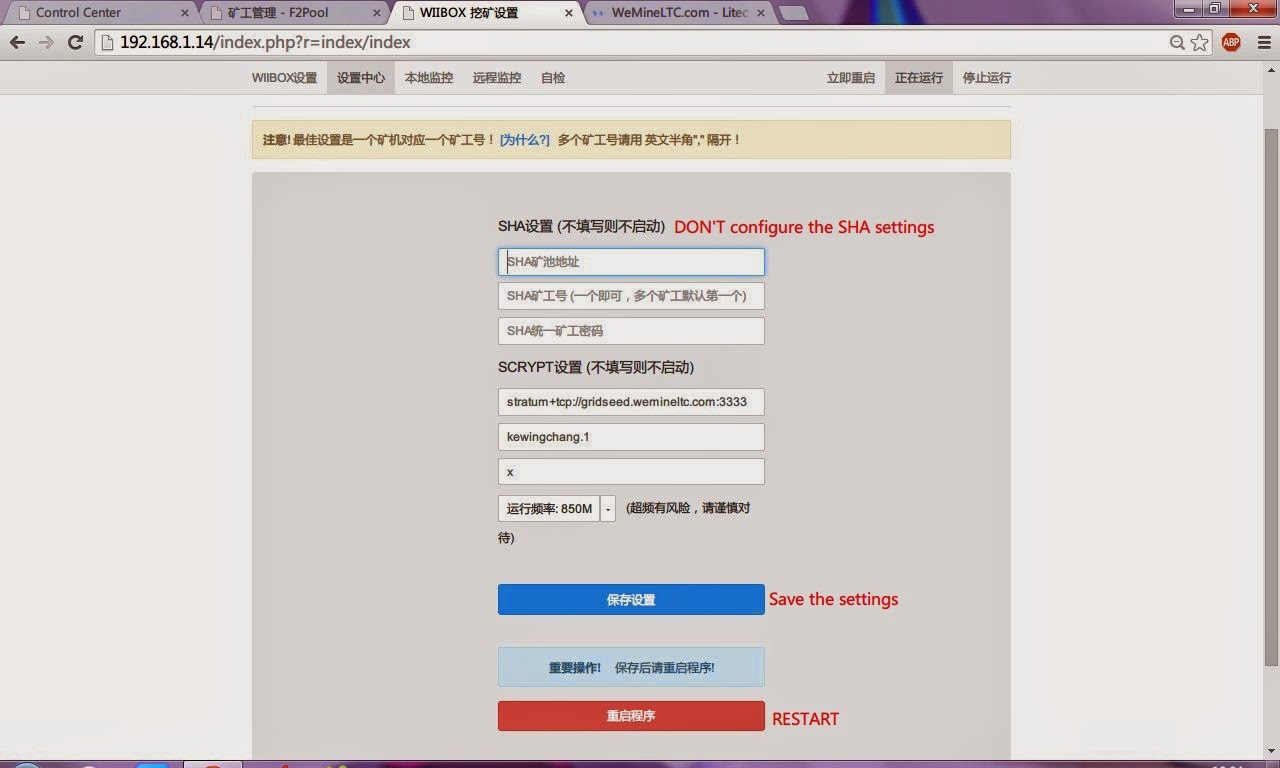

  • Set the scrypt setting to yours. Like below picture showing:

  • Then click the button "save the settings", then "restart"
  • When it showing "restart success", then the mining will be start automatically.

  • You can see the mining status in the "local monitoring".

  • You can check the speed in your mining pool also.
  • Important: The mining will start automatically in 1~2 minutes after power on. And you don't need to configure the miner every time.



{firmware upgrade}

It is not recommended to upgrade the firmware if your miner is working greeat. Do not updrade the firmware if your miner working great.
  1. Download the wiiBox firmware here: http://pan.baidu.com/s/1sjPieM5
  2. And the software for firmware upgrad Win32DiskImager here: http://sourceforge.net/projects/win32diskimager/
  3. Take out the SD card in the Raspberry Pi and insert it to a SD card reader.
  4. Insert the SD card reader (with SD card) to the USB port of your computer.
  5. And then upgrade the SD card to the wiiBox system:







{TROUBLE LIST}


Please try following tips if your miner get in trouble:
  • Configuration all correct ? Try to reconfigure the miner.
  • Do you followed our tutorial for configuration ?
  • Is your network environment normal ?
  • Does the pool you use is normal? try to change to another pool
  • Do you use the wiiBox (the pi hold the wiIBox system) for mining ? Please don't use other softwares for mining.
  • Do you overclocked the miner ? Try run it in normal setting.
  • Is the LED on the blade still blink? If one of the LED doesn't blink, which LED does not blink, the red one, or the green one, or both ?
  • If the green one does not go, then it's likely that the problem is caused by the PSU. Please try:
    • Tighten the power cord on the PSU(the power cord is fixed to the PSU by a screw)
    • change a PSU cord for the blade;
    • change a PSU.
  • And what about the red and green lights on the PI ? Please try:
    • change a psu(5V 2A microUSB charging source) for the pi if the pi does not work (all the lights does not blink);
    • upgrade the SD card to the wiiBox system again. (see section {firmware upgrade})
  • If you have several sets of accessories, try use the set of accessories of the working-well miner. Switch all the accessories of the 2 miners, especially SD card, pi and PSU.
  • There are 2 panels in each miner, try only plug one panel's power cord, see if it works with 1 panel (including the one with problem, see if it works with only 1 panel mining).
